Otocompact Steel

Description

Solid case in steel painted with epoxy powders in color white or silver gray (at choice).

Transparent gloss layer for easy cleaning and better protection against external agents (optional). Such treatment grants a long durability in time and high resistance of the colors to the light. The case is also mobile on 4 antistatic castors with brakes that help the operator in the floor cleaning and disinfection as well as in the easy positioning anywhere in the outpatient room.

Working top in tempered glass or Corian® easy to clean, anti-scratch and water resistant for an high degree of Infection control. Linear surface for an easier disinfection against proliferation of bacteria. Possibility to obtain also a drawer with letter-box opening for dirty instruments and a waste-bin.

Standard Applications:

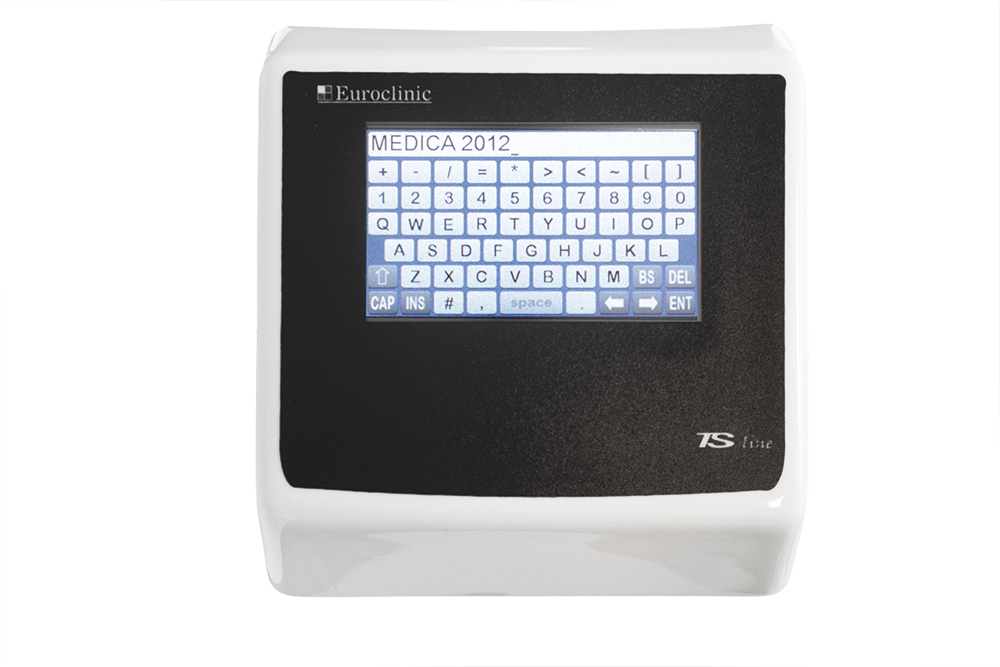

• Colour and Adjustable Touch Screen Control panel 4,3"

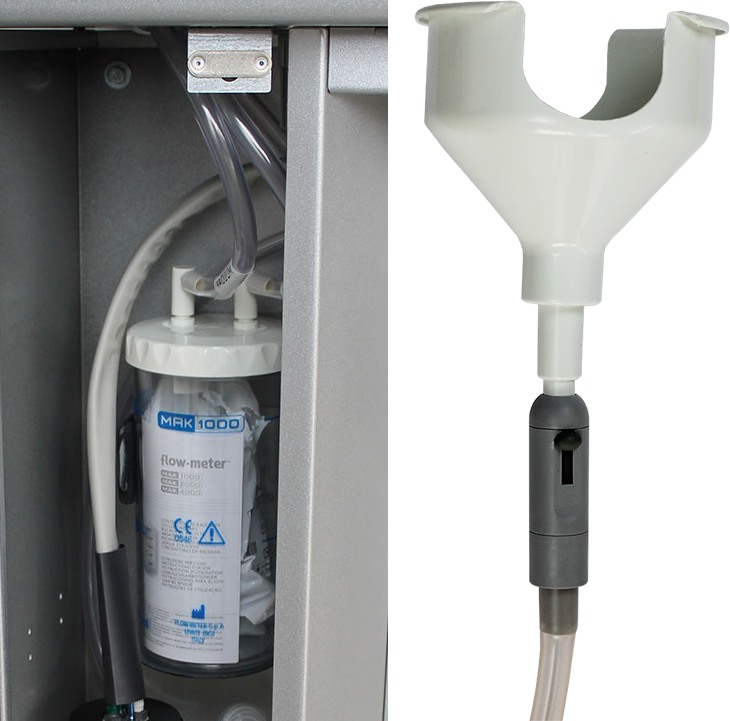

• Powered Suction System ( 50 lt/min - 70 lt/min) complete with integrated suction jar ( 1 lt capacity)

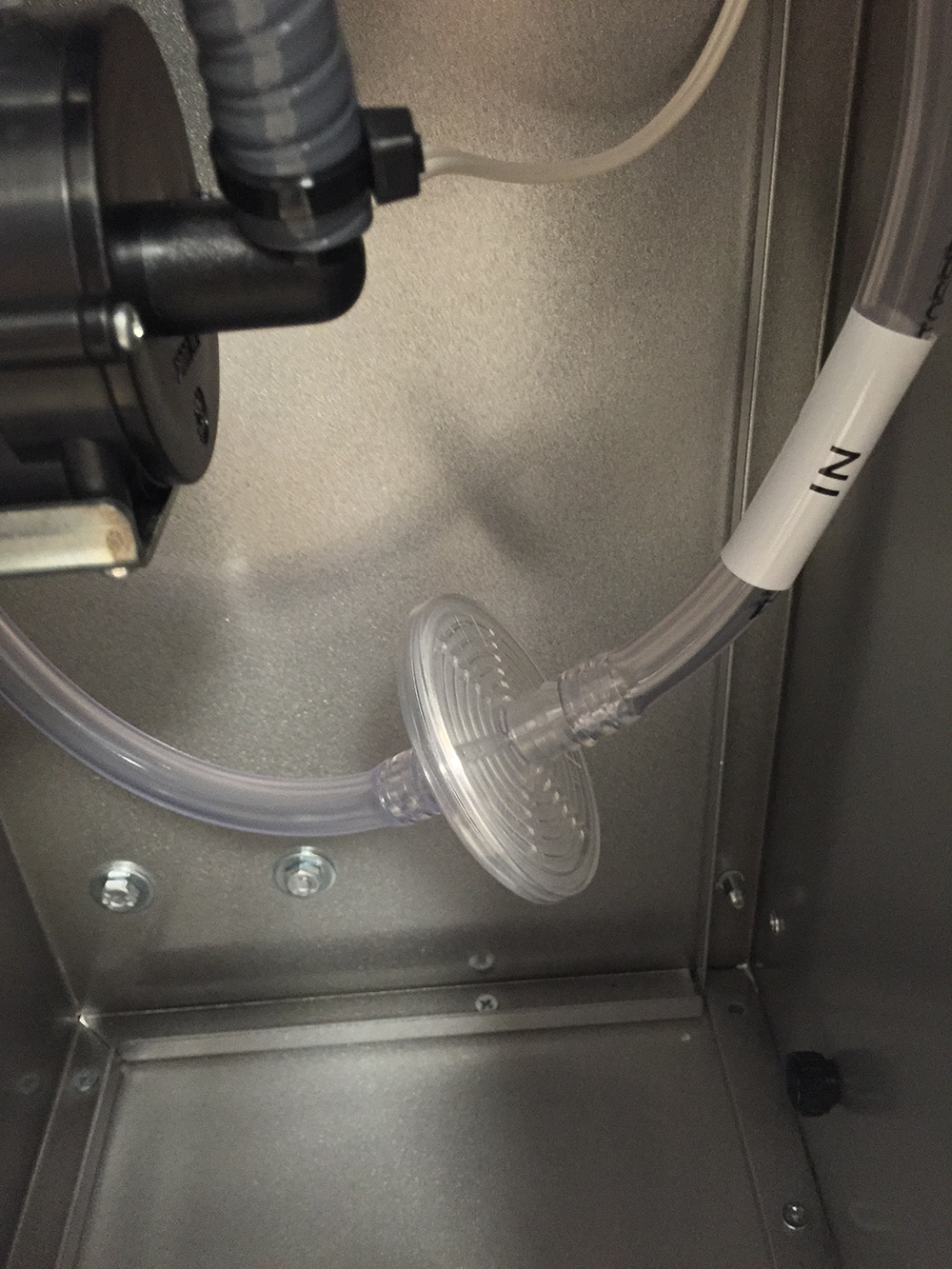

• Hydrophobic Filter
• Ear Funnel

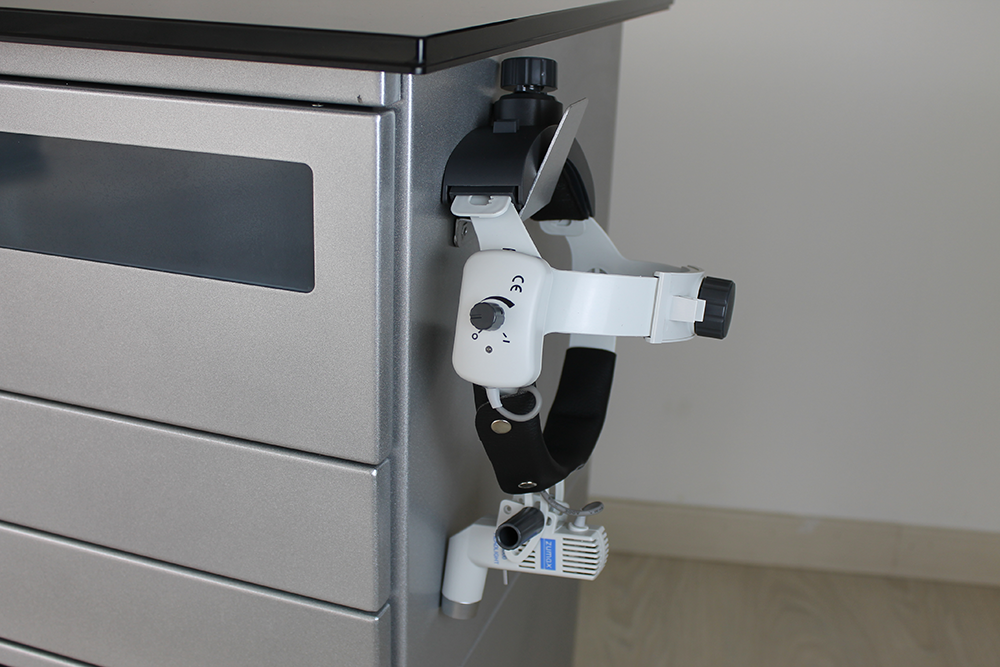

• N.2 supports for Head Lamp

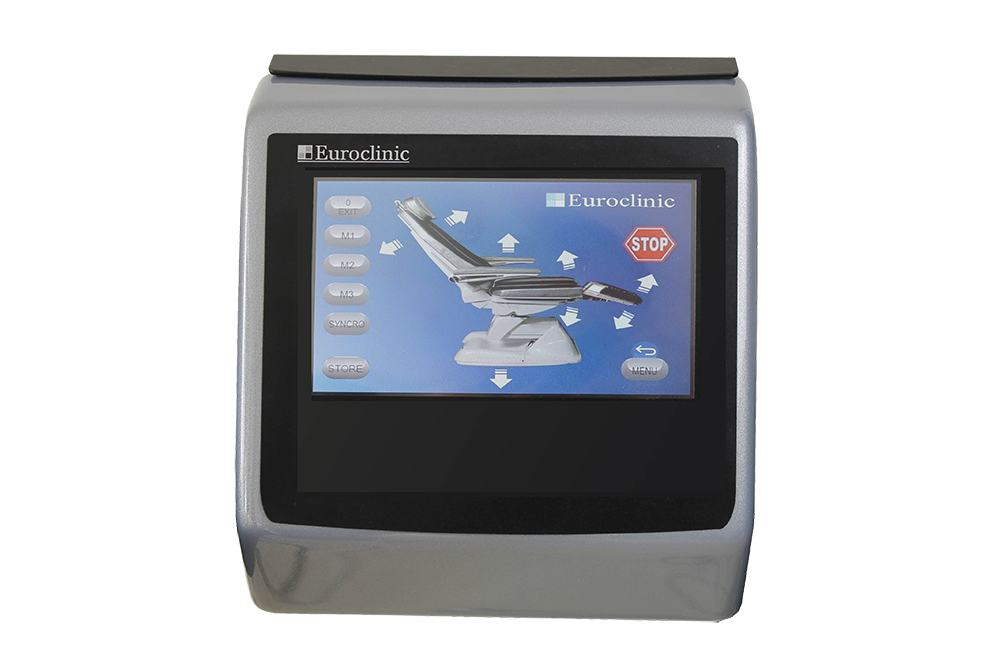

• Wireless control of the motorized movements of the combined 3-4 motors ENT chair, if provided
• Compartment for waste bin, placed under the drawers combination

Optional Applications:

• Up to 6 drawers combination for instruments storage and with the possibility to house external electro medical - frontal drawers in metal painted with epoxidy powders or in glass ( more than 20 nuances available)
• Application of second suction system
• Application of single use suction jar ( 1 or 2lt capacity)
• Automatic Discharge system
• Connection to the main water system
• Application of rinsing system of suction tube
• Insufflation system with digital manometer
• Auricular Washing syringe with fixed temperature at 37°
• Application of medicament kit for pulverization of powder and liquid medicaments : up to 6 medicaments bottles available
• N.2 Delrin endoscopes support - on the lateral part of the unit
• Larynx mirror warmer
• Integrated Led light source with 1 or 2 channels for f.o. cable- with color temperature 5.500°K / 200 Lumen
• Led Light source with handpiece for direct connection to endoscopes
• Superior modular desk in 3 levels complete with stainless steel trays ( available with warming application)
• Pole support for microscope and articulated arm for monitor
• Video Endoscopy system
• Microscope
• Video Nistagmoscope
• Rhinomanometer
