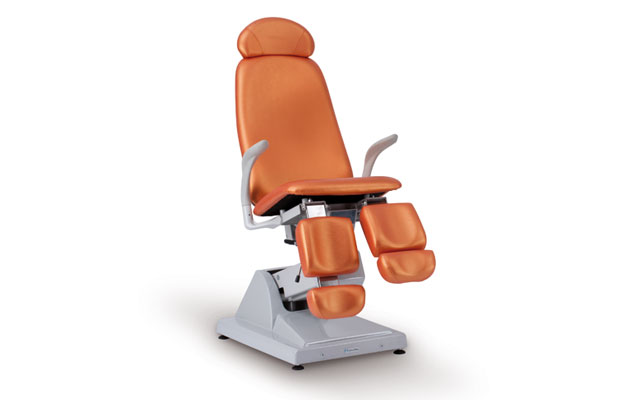

Podopeg is a podiatry and chiropody patient chair designed in cooperation with 5 professional consultants. It is operated by very silent low-tension electric actuators that enable the rising and descent from 46 cm off the floor (“0” position) up to a maximum of 88 cm.
The Trendelenburg position is synchronized with the rising movement, at maximum height the leg-rests are 110 cm off the floor. The back-rest movement can go as low as 180° thanks to a gas pump.

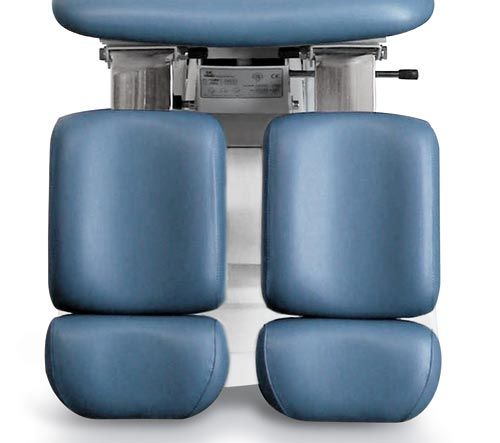

The leg-rest can be moved separately and it can be manually extended and positioned by means of a locking device. Podopeg presents three different variants, which are different only in the mechanical movements, but equal in style:
PODOPEG: chair with one motor that electrically controls rising and descent
PODOPEG/E: chair with legrests, seat and descent electrically moved and with backrest manually moved.
| NAME | VALUE |
|---|---|
| Feeding tension | 100-240 VAC 50/60 Hz |
| Low tension motor | 24 Vdc |
| Lifting motor push | 8000 N |
| Backrest push | 800 N |
| Lifting Capacity | 180 Kg |
| Maximum power | 90 VA |
| Fuses protection | 1,6 A |
| Control box protection degree | IP54 |
| Chair weight | 70 Kg |

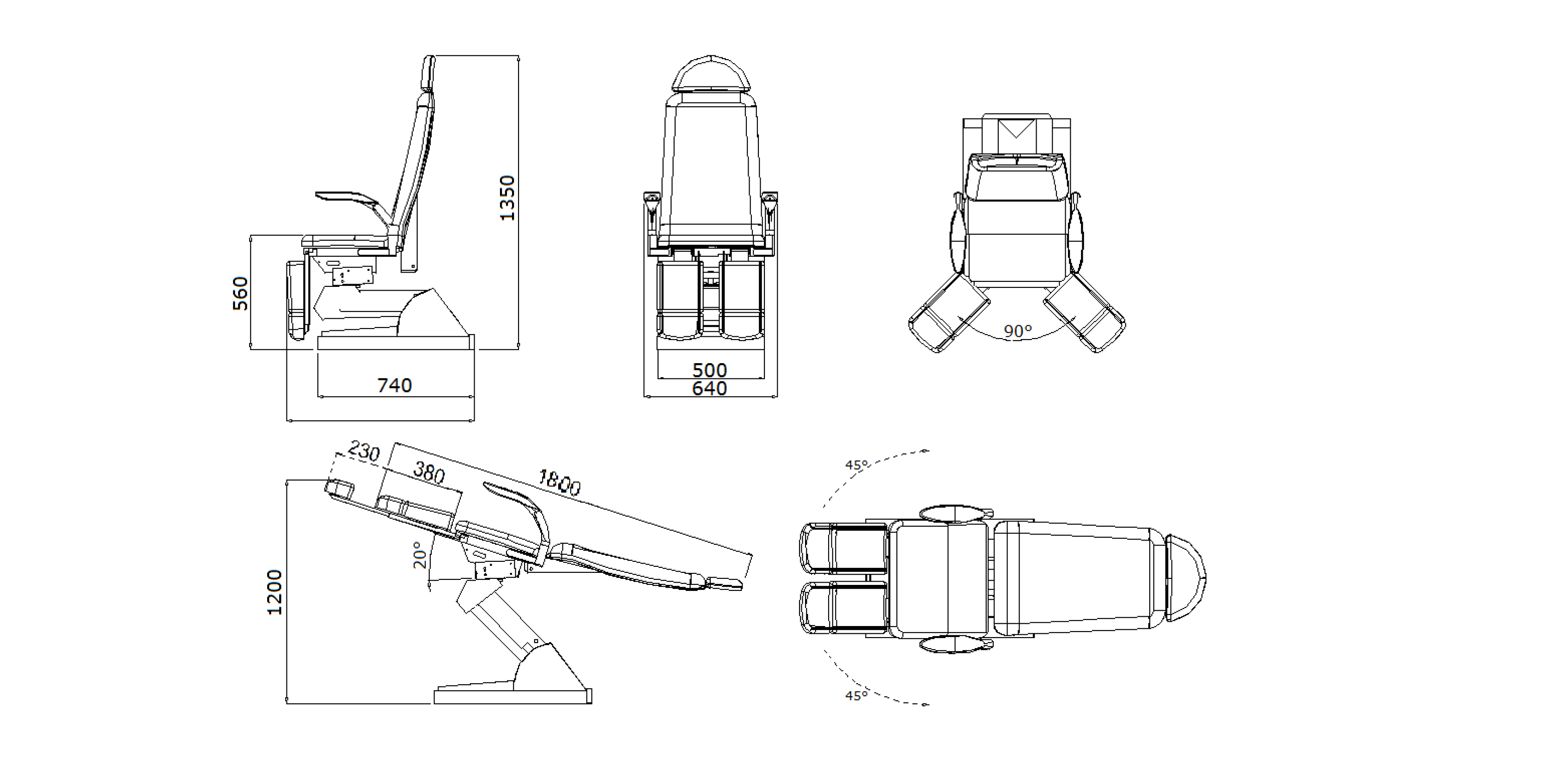

| Base length | 740 mm |
| Maximum legrest height | 1200 mm |
